Mimicking the fascinating motion of animals and shapes of plants using molecules is an ongoing challenge for synthetic chemists. Multilayered bio-structures such as flowers, fruits, and seeds are so complicated that chemical mimicry of such structures is extremely difficult. Peanuts are well known seeds bearing a couple of beans surrounded by a pod (Figure 1, left). However, imitation of the unique core-shell structure has not been accomplished so far on the nanoscale. Here, Yazaki, Chand, and Yoshizawa et al. report the synthesis of peanut-shaped nanostructures constructed of polyaromatic frameworks (Figure 1, right).^[1] Our synthetic approach to the molecular peanuts is the use of both coordination bonds and π-stacking interactions.

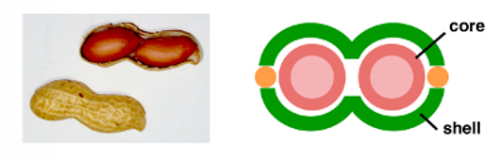

Figure 1 Photograph of a peanut and design of a molecular peanut.

　We prepared W-shaped polyaromatic ligand 1 from bromoanthracene by six-step reactions including Negishi and Suzuki-Miyaura cross-couplings (Figure 2, top). It should be noted that ligand 1 exists as a mixture of ten stereoisomers due to restricted rotation about the aromatic-aromatic bonds (Figure 2, bottom).

Figure 2 W-shaped ligand 1 and its stereoisomers (R = -OCH₃).

　When an isomeric mixture of ligand 1 was combined with Pd(II) ion in a 4:3 ratio in DMSO at elevated temperature, double capsule 2 was quantitatively formed through multiple coordination bonds (Figure 3, top). Structural evidence of the double capsule was provided by single crystal X-ray diffraction analysis (in collaboration with Rigaku Co.). The dumbbell-shaped structure has two identical, spherical cavities with a diameter of ~1 nm, each fully surrounded by the eight anthracene panels (Figure 3, bottom).

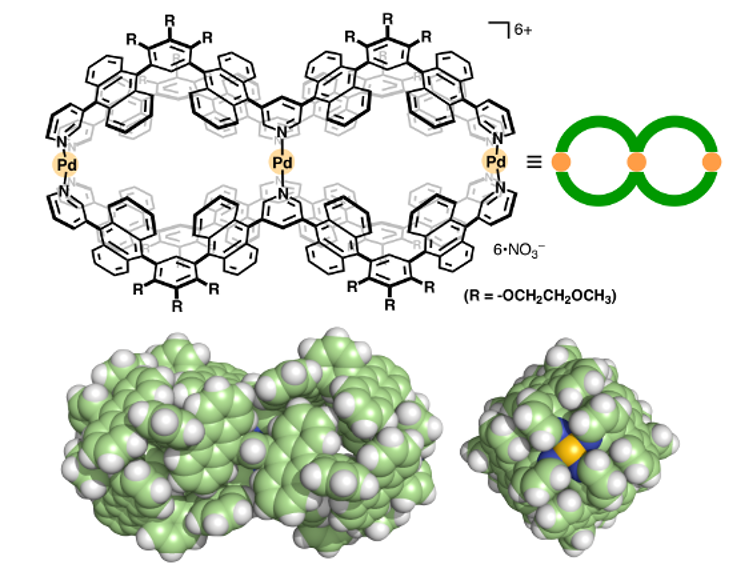

Figure 3 Double capsule 2 and its crystal structure (R = -H).

　The conversion from double capsule 2 to molecular peanuts occurred quantitatively upon treatment with various fullerenes (e.g., C₆₀, C₇₀, and Sc₃N@C₈₀). For example, when C₆₀ powder suspended in a solution of 2 was heated for several hours, molecular peanut 3 including two molecules of C₆₀ was obtained through multiple host-guest π-stacking interactions and the release of the central Pd(II) ion (Figure 4, synthetic route 1). The optimized structure shows a peanut-shaped nanostructure, where two C₆₀ "beans" accommodated in the cavity are fully covered with the dumbbell-like "pod" (Figure 4, bottom). The product size is estimated to be ~3 nm. It is noteworthy that the molecular peanut could be also obtained in one step by mixing ligand 1, Pd(II) ion, and C₆₀ (Figure 4, synthetic route 2).

Figure 4 Formation of molecular peanut 3 and its optimized structure.

　We also observed the selective heteroleptic encapsulation of aliphatic and aromatic molecules by double capsule 2. Mixing spherical diamantane and planar phenanthrene with 2 in an aqueous solution gave rise to a 1:1:2 host-guest-guest' complex in nearly quantitative yield (Figure 5). This unusual encapsulation arises from the cooperative changes in volume of the linked cavities upon guest encapsulation.

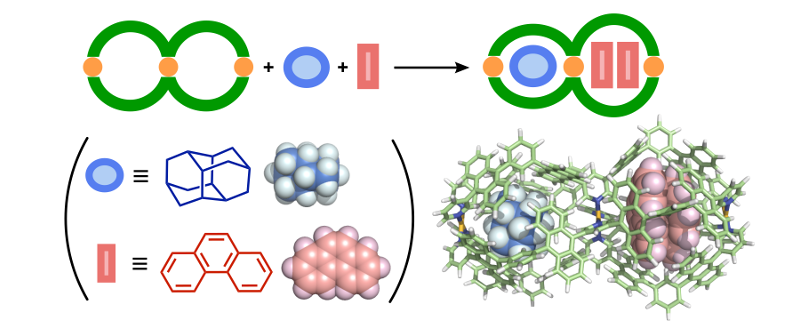

Figure 5 Heteroleptic encapsulation by double capsule 2 and its optimized structure.

　In summary, we have created peanut-shaped nanostructures through stepwise and one-pot self-assembly. The unusual core-shell nanostructures quantitatively form through multiple coordination bonds and π-stacking interactions. This synthetic strategy could provide wide-ranging utilities for the facile preparation of various complex bio-structures.^[2-6]
